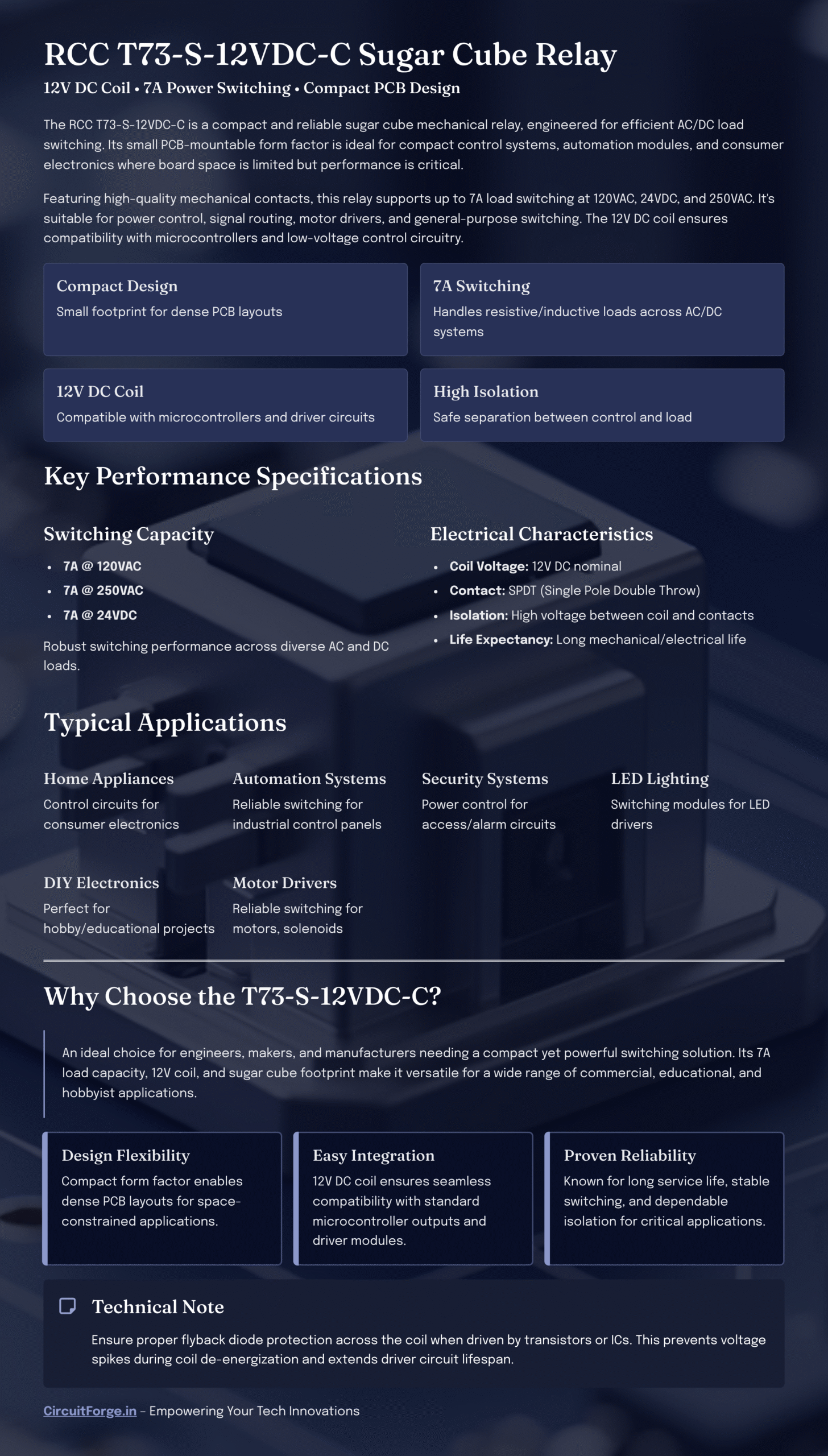

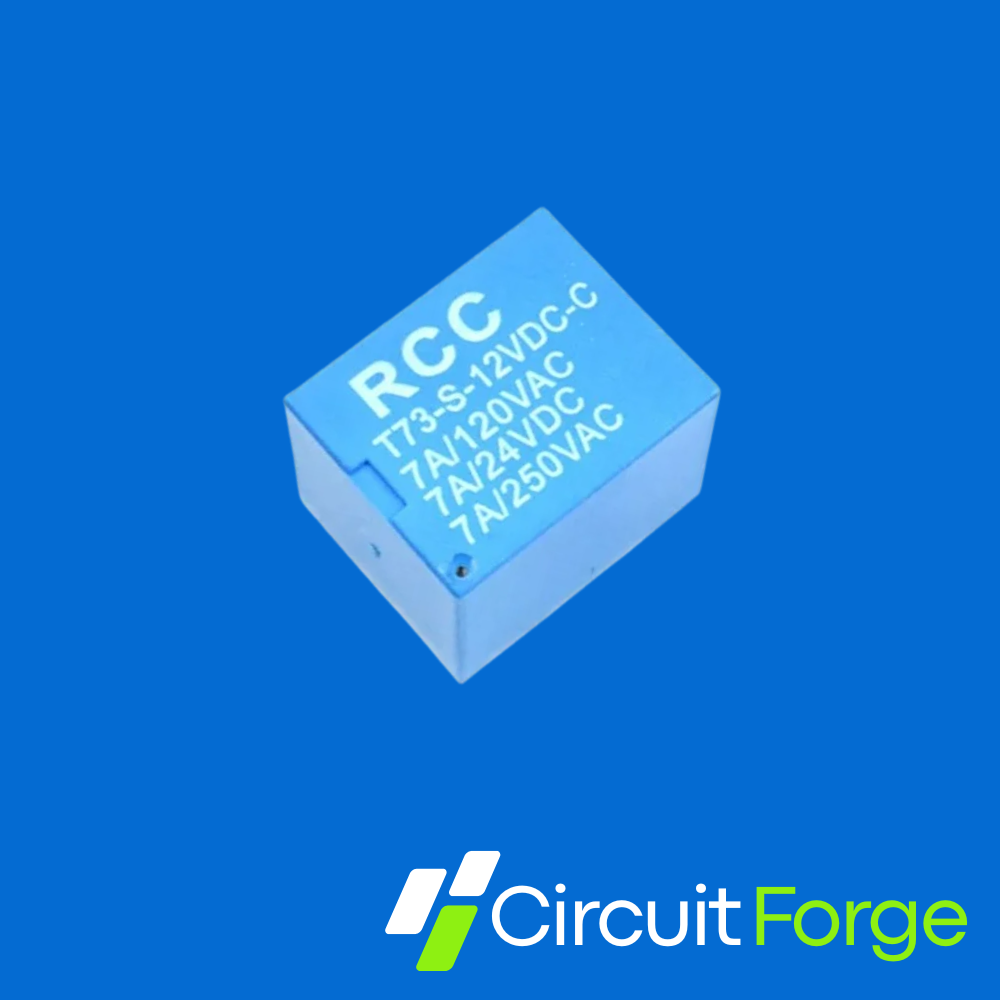

Relay 12V T73-S-12VDC-C RCC
This compact PCB-mount electromechanical relay uses a 12V DC coil to switch external loads. It suits control systems, automation modules and general-purpose switching applications.
Key Features
Compact Design
Sugar-cube form factor for dense PCB layouts.
7A Switching
Switching capacity for general-purpose load control.
12V DC Coil
Suitable for control circuits with an appropriate relay driver.
Electrical Isolation
Separation between the coil control circuit and switched contacts.
Electrical Ratings
- 7A at 120VAC
- 7A at 250VAC
- 7A at 24VDC
- Contact arrangement: SPDT
- Mechanical life: stated as 10 million cycles
Typical Applications
- Home appliances and control electronics
- Industrial automation and power-control modules
- Security systems
- Lighting control
- Motor and solenoid control
- DIY electronics and educational projects
Coil Driver
Use an appropriate transistor or relay driver for the coil. Provide suitable suppression for coil transients and select the contact rating for the actual load type.
